DTHD Series Pins and Sockets

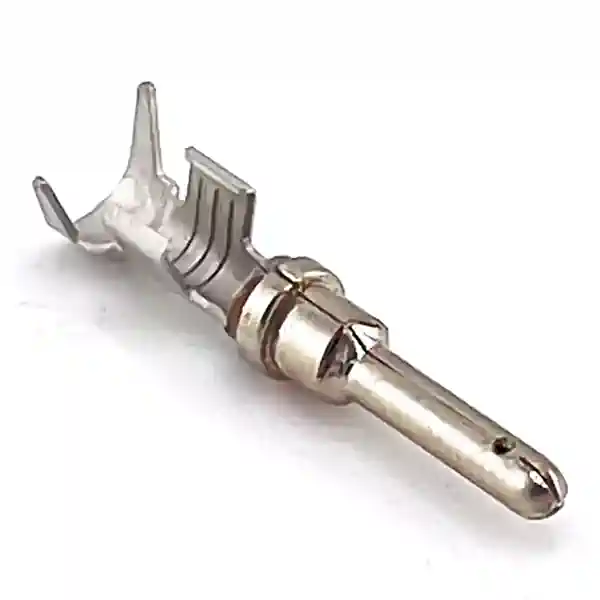

Deutsch 1060-12-0166 Pin, Stamped and Formed, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles. It uses nickel plating, is rated for 25 amps continuous. The contact accepts .113-.176 insulation. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Stamped and Formed pin contact Size 12 12-14 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

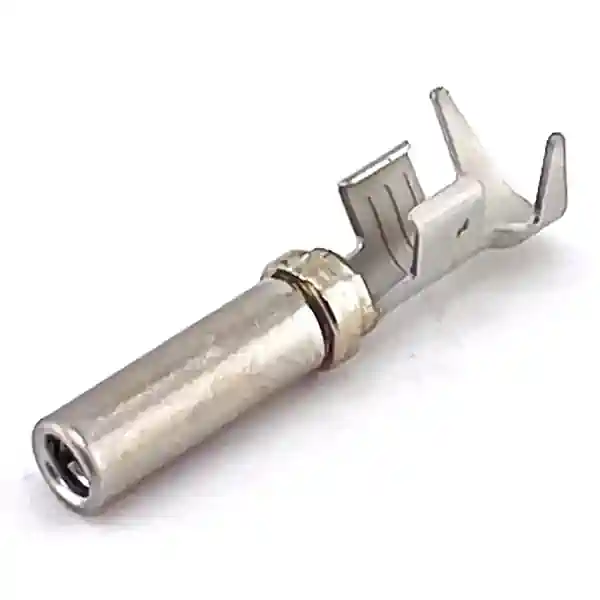

Deutsch 1062-12-0166 Socket, Stamped and Formed, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs. It uses nickel plating, is rated for 25 amps continuous. The contact accepts .113-.176 insulation. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Stamped and Formed socket contact Size 12 12-14 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

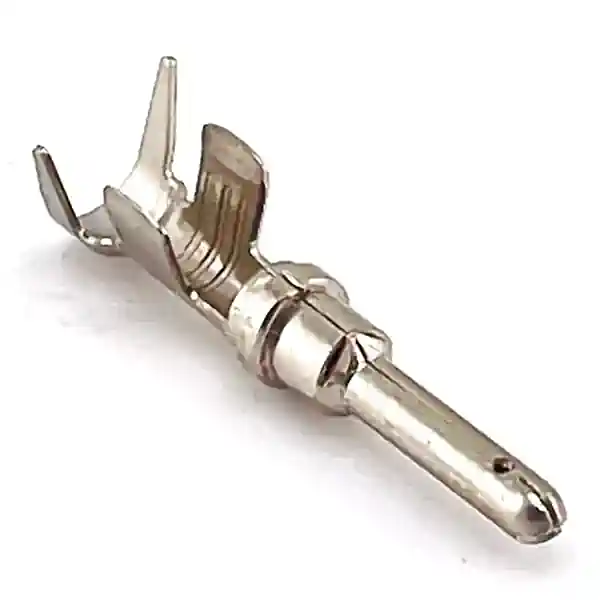

Deutsch 1060-12-0222 Pin, Stamped and Formed, Nickel, 10 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles. It uses nickel plating, is rated for 25 amps continuous. The contact accepts .140-.204 insulation. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Stamped and Formed pin contact Size 12 10 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

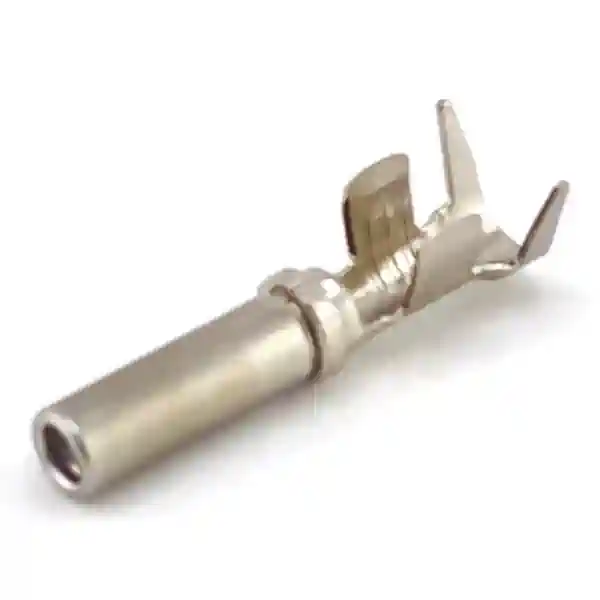

Deutsch 1062-12-0222 Socket, Stamped and Formed, Nickel, 10 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs. It uses nickel plating, is rated for 25 amps continuous. The contact accepts .140-.204 insulation. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Stamped and Formed socket contact Size 12 10 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

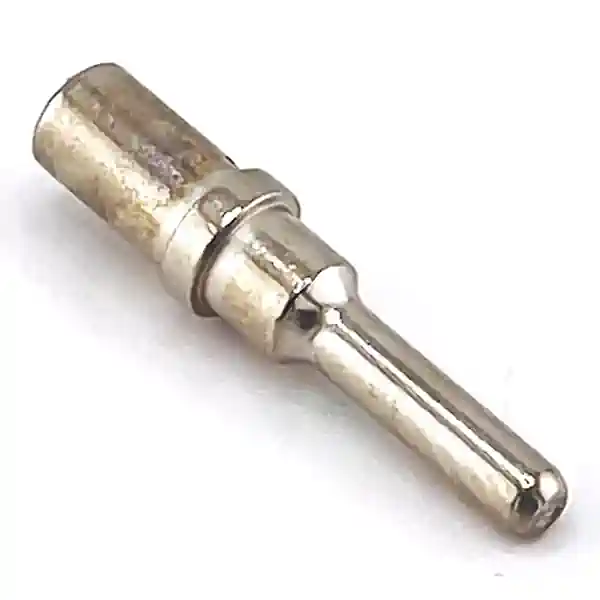

Deutsch 0460-204-12141 Pin, Solid, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles. It uses nickel plating, is rated for 25 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid pin contact Size 12 12-14 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

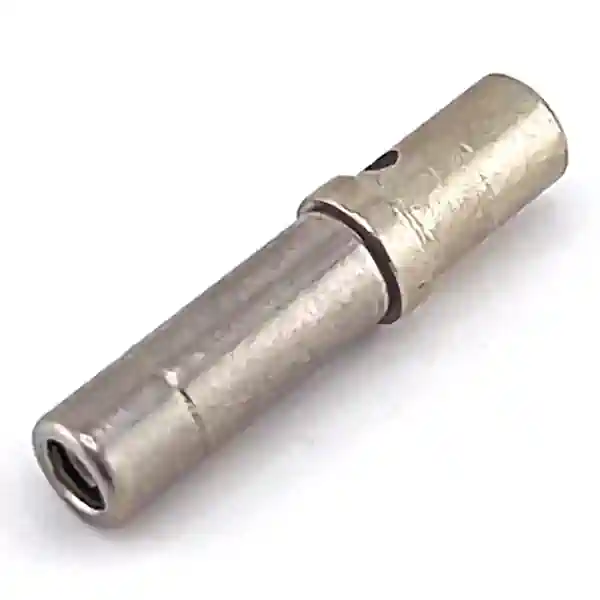

Deutsch 0462-203-12141 Socket, Solid, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs. It uses nickel plating, is rated for 25 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 12 12-14 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

Tri-Star C10-1212-090 Socket, Solid, Nickel, 12-14 AWG. This TE Connectivity Tri-Star Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs. It uses nickel plating, is rated for 25 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 12 12-14 AWG wire Nickel plated 25A continuous Fits DTP/DTHD applications

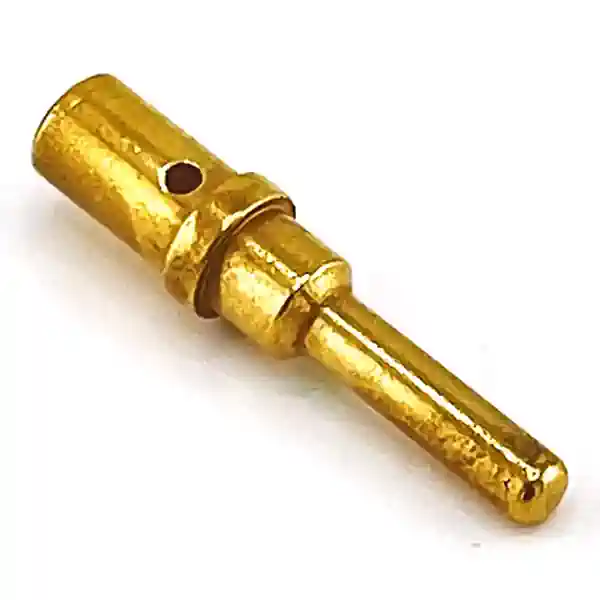

Deutsch 0460-220-1231 Pin, Solid, Gold, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles. It uses gold plating, is rated for 25 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid pin contact Size 12 12-14 AWG wire Gold plated 25A continuous Fits DTP/DTHD applications

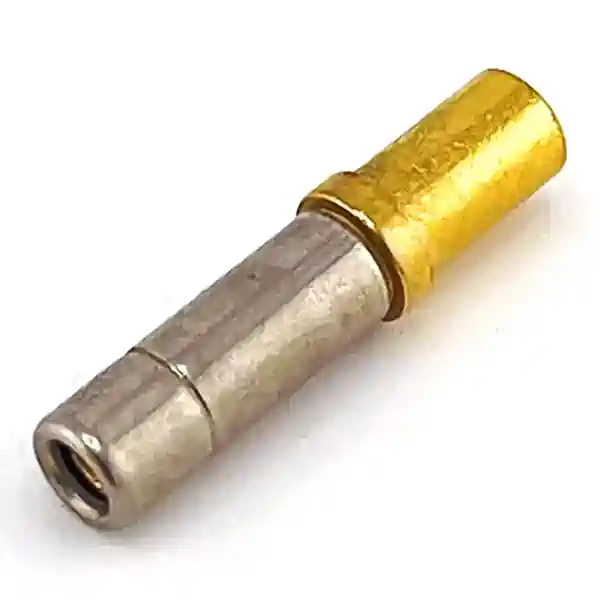

Deutsch 0462-210-1231 Socket, Solid, Gold, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs. It uses gold plating, is rated for 25 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 12 12-14 AWG wire Gold plated 25A continuous Fits DTP/DTHD applications

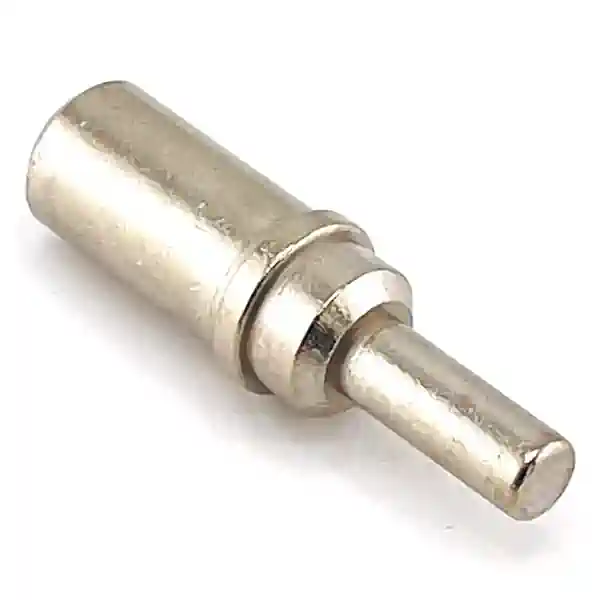

Deutsch 0460-204-08141 Pin, Solid, Nickel, 8-10 AWG. This TE Connectivity Deutsch Size 8 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 8, receptacles. It uses nickel plating, is rated for 60 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid pin contact Size 8 8-10 AWG wire Nickel plated 60A continuous Fits DTHD applications

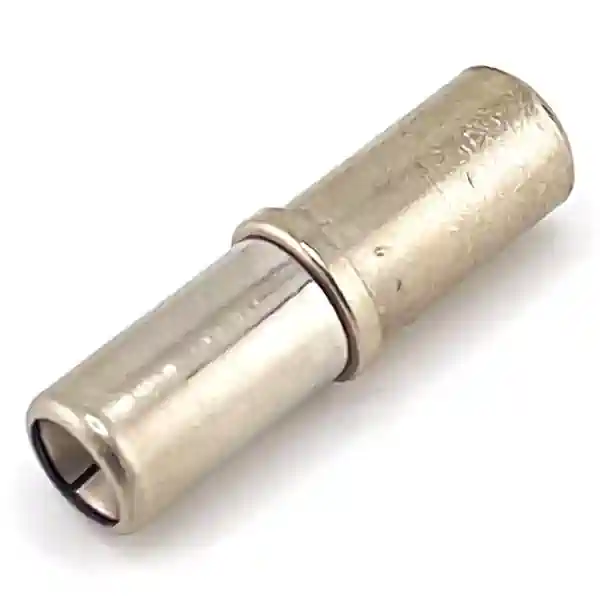

Deutsch 0462-203-08141 Socket, Solid, Nickel, 8-10 AWG. This TE Connectivity Deutsch Size 8 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 8, plugs. It uses nickel plating, is rated for 60 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 8 8-10 AWG wire Nickel plated 60A continuous Fits DTHD applications

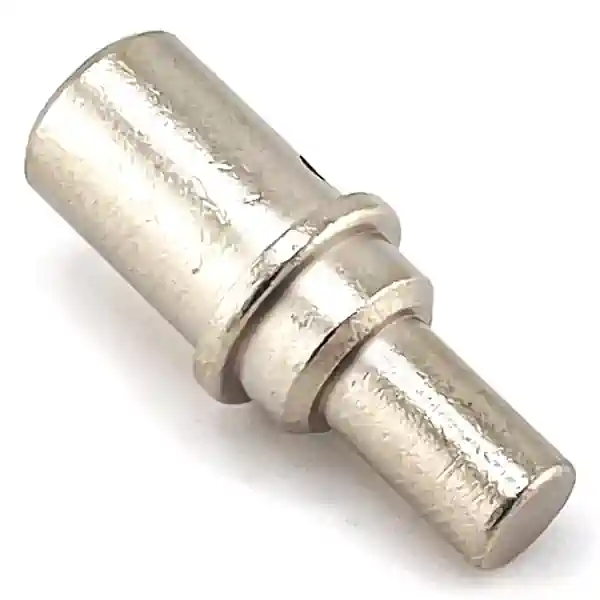

Deutsch 0460-204-0490 Pin, Solid, Nickel, 6 AWG. This TE Connectivity Deutsch Size 4 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits Deutsch DTHD Series applications. It uses nickel plating. It can also support 8-10 AWG conductors when used with the correct DTHD crimp sleeve reducer. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid pin contact Size 4 6 AWG wire Nickel plated Fits DTHD applications

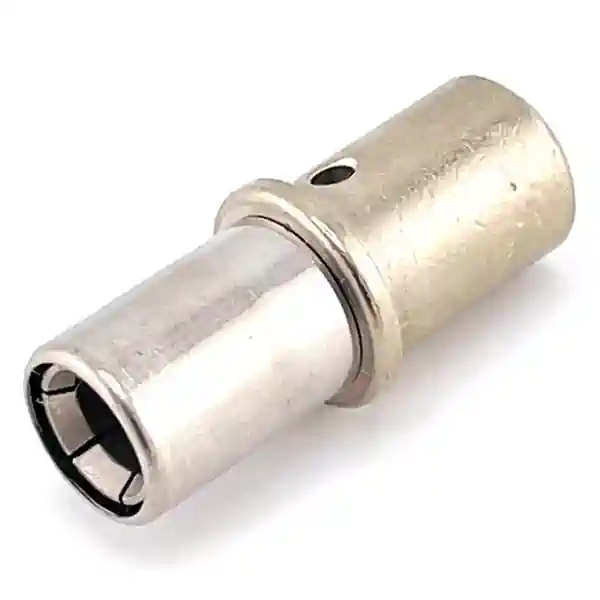

Deutsch 0462-203-04141 Socket, Solid, Nickel, 6 AWG. This TE Connectivity Deutsch Size 4 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits Deutsch DTHD Series applications. It uses nickel plating. It can also support 8-10 AWG conductors when used with the correct DTHD crimp sleeve reducer. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 4 6 AWG wire Nickel plated Fits DTHD applications

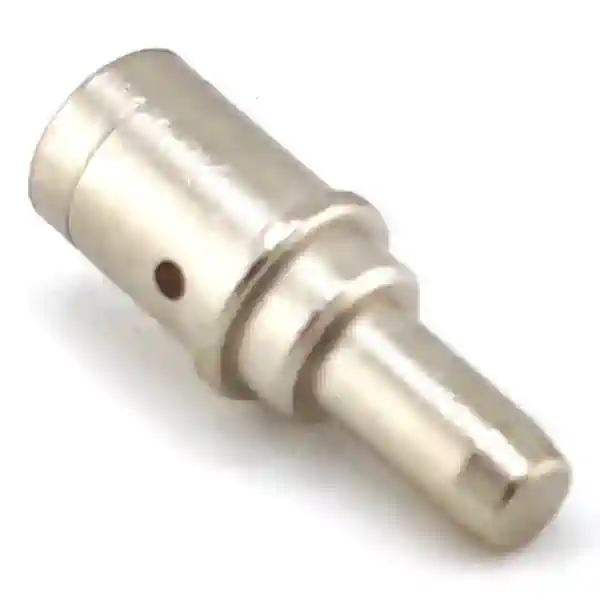

Deutsch 5960-203-04141 Pin, Solid, Nickel, 4 AWG. This TE Connectivity Deutsch Size 4 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 4, receptacles. It uses nickel plating, is rated for 100 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid pin contact Size 4 4 AWG wire Nickel plated 100A continuous Fits DTHD applications

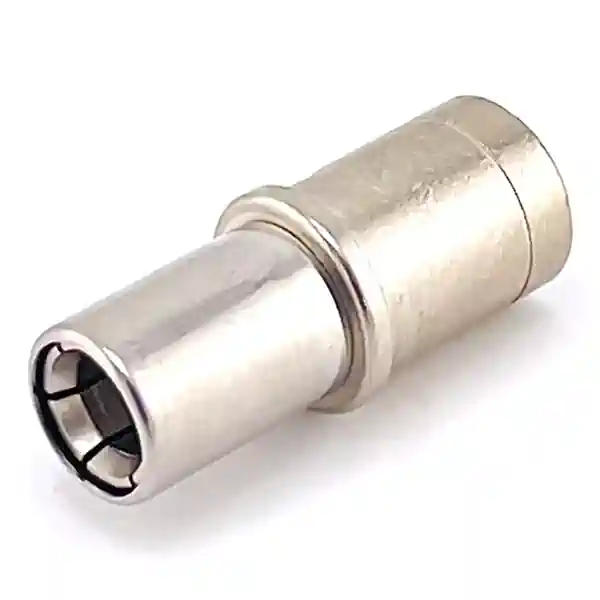

Deutsch 5962-203-04141 Socket, Solid, Nickel, 4 AWG. This TE Connectivity Deutsch Size 4 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 4, plugs. It uses nickel plating, is rated for 100 amps continuous. Verify connector family, contact size, wire gauge, and plating before mixing contacts in the same assembly. Solid socket contact Size 4 4 AWG wire Nickel plated 100A continuous Fits DTHD applications

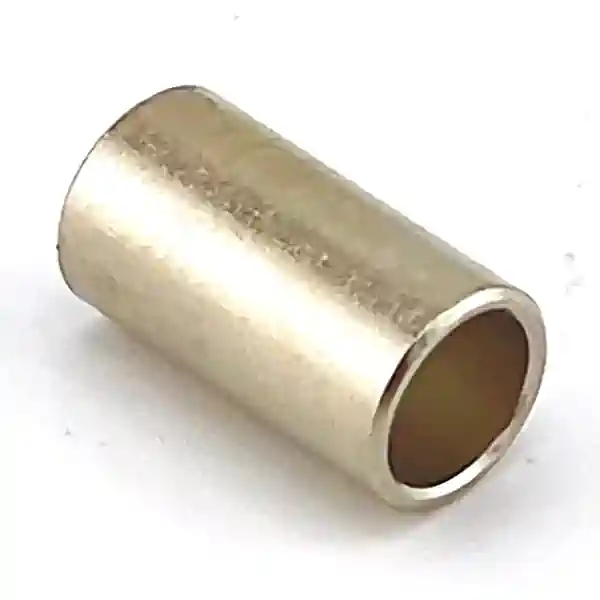

Deutsch 0421-203-04141 Crimp Sleeve Reducer, 8-10 AWG. This TE Connectivity Deutsch DTHD crimp sleeve reducer lets 8-10 AWG conductors be used with DTHD size 4 contacts that normally accept 6 AWG wire. Use it with compatible 0460-204-0490 pin and 0462-203-04141 socket contacts when the wire size and application match. DTHD service part Size 4 reducer sleeve 8-10 AWG wire For 6 AWG DTHD contacts

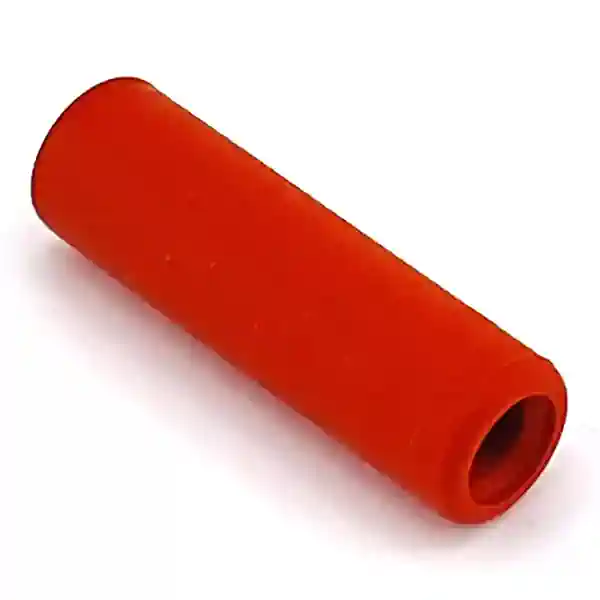

Deutsch 0410-241-0406 Crimp Sleeve Reducer Seal, 8-10 AWG. This TE Connectivity Deutsch DTHD crimp sleeve reducer seal supports DTHD size 4 connector service when adapting 8-10 AWG conductors with the matching reducer sleeve. Use it with compatible DTHD plugs and receptacles where the application calls for the 0410-241-0406 seal. DTHD service part Size 4 reducer seal 8-10 AWG Deutsch connector accessory

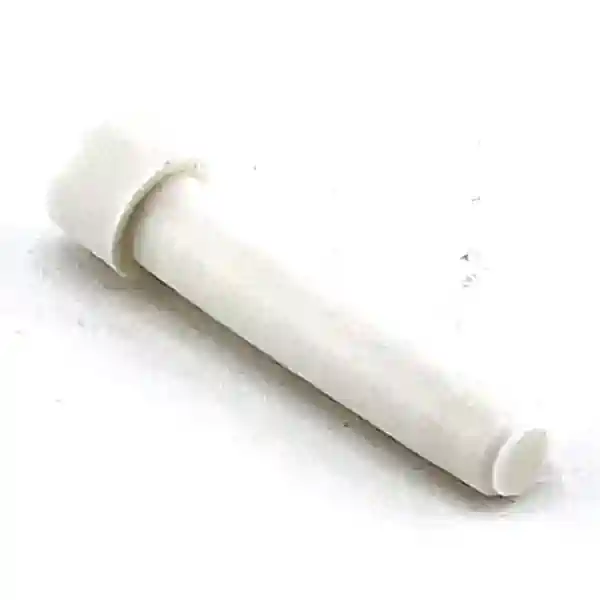

Deutsch 114017 Sealing Plug, Thermoplastic, White. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies. It fits Works with many DT Series connectors and DTP Series connectors, plus selected Size 12 DTHD Series connectors. Not for DT connectors with end cap or shrink boot modifications. and is used during service, repair, or new harness construction when not every cavity is populated with a terminal. Match the sealing plug to the connector series, contact size, and cavity style before assembly. Sealing plug Unused-cavity seal White Thermoplastic Deutsch connector Deutsch accessory

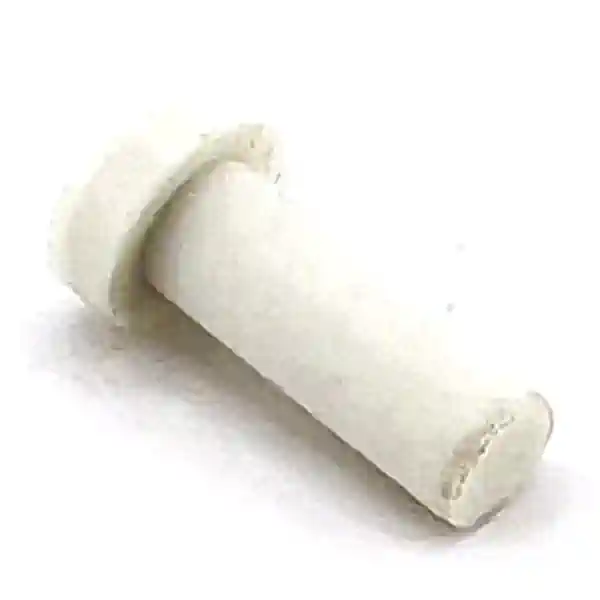

Deutsch 114018 Sealing Plug, Thermoplastic, White. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies. It fits All Size 8 DTHD plugs and receptacles and Size 8 cavities in Round Series connectors. and is used during service, repair, or new harness construction when not every cavity is populated with a terminal. Match the sealing plug to the connector series, contact size, and cavity style before assembly. Sealing plug Unused-cavity seal White Thermoplastic Deutsch connector Deutsch accessory

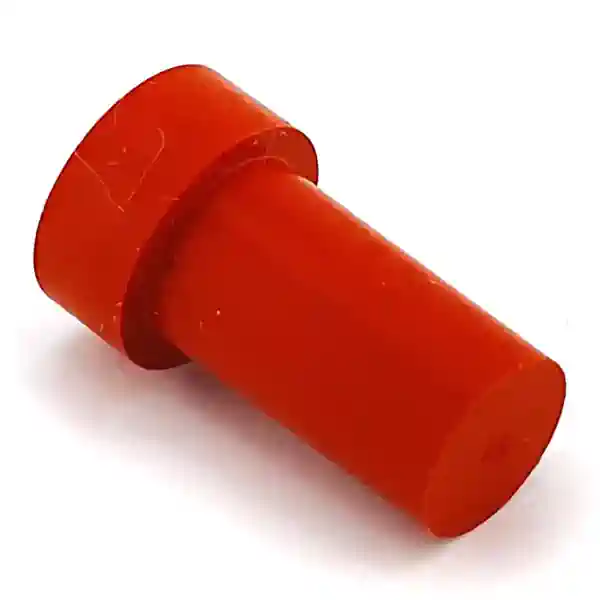

Deutsch 114019 Sealing Plug, Silicone Rubber, Orange. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies. It fits All Size 4 DTHD plugs and receptacles and Size 4 cavities in Round Series connectors. and is used during service, repair, or new harness construction when not every cavity is populated with a terminal. Match the sealing plug to the connector series, contact size, and cavity style before assembly. Sealing plug Unused-cavity seal Orange Silicone Rubber Deutsch DTHD Series Deutsch accessory
